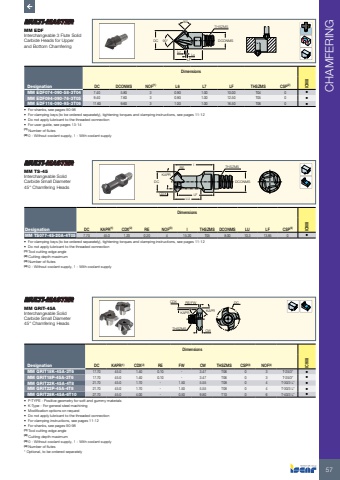

CHAMFERING57DC 90%u00b0L7LFL690%u00b0DCONMSTHSZMSDimensionsDesignation DC DCONMS NOF(1) L6 L7 LF THSZMS CSP(2) IC908MM EDF074-090-58-3T04 7.40 5.80 3 0.90 1.00 10.00 T04 0 %u2022 MM EDF094-090-76-3T05 9.40 7.60 3 0.90 1.00 12.50 T05 0 %u2022 MM EDF116-090-95-3T06 11.60 9.60 3 1.00 1.00 16.50 T06 0 %u2022 %u2022 For shanks, see pages 90-98 %u2022 For clamping keys (to be ordered separately), tightening torques and clamping instructions, see pages 11-12 %u2022 Do not apply lubricant to the threaded connection %u2022 For user guide, see pages 13-14(1) Number of flutes (2) 0 - Without coolant supply, 1 - With coolant supply MM EDFInterchangeable 3 Flute Solid Carbide Heads for Upper and Bottom Chamferingl REKAPRDCCDX LFDCONMSLUTHSZMSDimensionsDesignation DC KAPR(1) CDX(2) RE NOF(3) l THSZMS DCONMS LU LF CSP(4) IC908MM TS077-45-20A-4T05 7.70 45.0 1.20 0.20 4 15.20 T05 8.00 10.3 13.85 0 %u2022 %u2022 For clamping keys (to be ordered separately), tightening torques and clamping instructions, see pages 11-12 %u2022 Do not apply lubricant to the threaded connection(1) Tool cutting edge angle (2) Cutting depth maximum (3) Number of flutes (4) 0 - Without coolant supply, 1 - With coolant supply MM TS-45Interchangeable Solid Carbide Small Diameter 45%u00b0 Chamfering HeadsCDXCWRE/FW DCKAPR KAPRTHSZMSDimensionsDesignation DC KAPR(1) CDX(2) RE FW CW THSZMS CSP(3) NOF(4) IC908MM GRIT18K-45A-3T6 17.70 45.0 1.40 0.10 - 3.47 T06 0 3 T-25/3* %u2022 MM GRIT18P-45A-3T6 17.70 45.0 1.40 0.10 - 3.47 T06 0 3 T-25/3* %u2022 MM GRIT22K-45A-4T8 21.70 45.0 1.70 - 1.50 5.55 T08 0 4 T-30/3 L* %u2022 MM GRIT22P-45A-4T8 21.70 45.0 1.70 - 1.50 5.55 T08 0 4 T-30/3 L* %u2022 MM GRIT28K-45A-6T10 27.70 45.0 4.00 - 0.50 9.80 T10 0 6 T-40/3 L* %u2022 %u2022 P-TYPE - Positive geometry for soft and gummy materials %u2022 K-Type - For general steel machining %u2022 Modification options on request %u2022 Do not apply lubricant to the threaded connection %u2022 For clamping instructions, see pages 11-12 %u2022 For shanks, see pages 90-98(1) Tool cutting edge angle (2) Cutting depth maximum (3) 0 - Without coolant supply, 1 - With coolant supply (4) Number of flutes * Optional, to be ordered separately MM GRIT-45AInterchangeable Solid Carbide Small Diameter 45%u00b0 Chamfering Heads
